XOOT System for Huion Kamvas Pro 27

Description

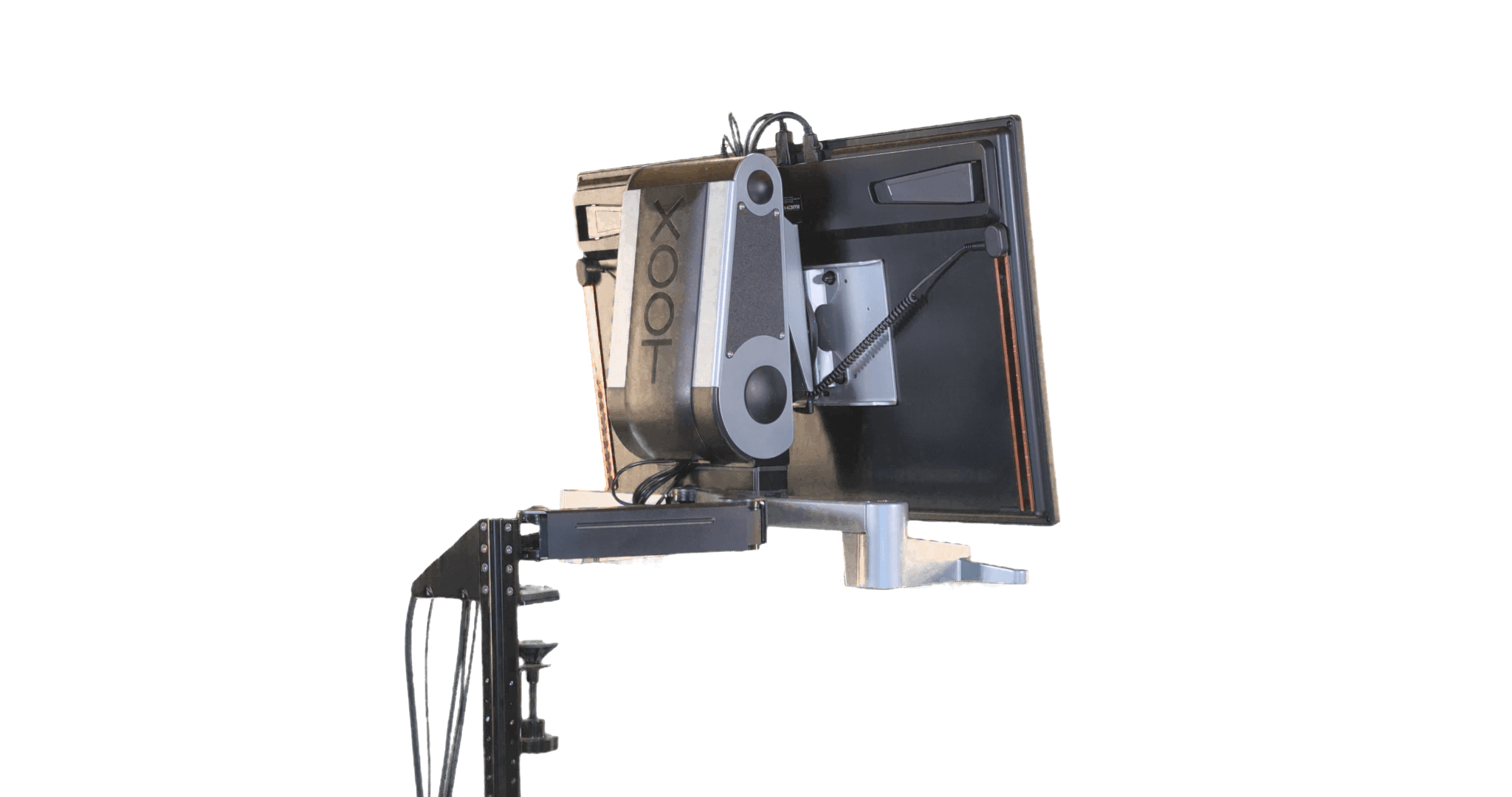

XOOT_Pro arm with Kit for Vesa Compatible Pen Displays

This Kit bundle contains all parts required to attach: Kamvas Pro 27

⚠️Warning, ensure your workspace is compatible with XOOT_Pro before purchasing.

See: Desk Compatibility Guide.

Cables

Included Cables: HDMI, Display Port and USB (USB is not video capable). These cables extend approximately 6 ft (2 m) from the back of the desk.

Display Power Cable – Barrel Connector 5.5mm x 2.1mm. This cables extends approximately 3 ft (1 m) from the back of the desk.

Some assembly is required.

• Printed Instructions.pdf
• Video Instructions

Kit Clearance and Reach

Leg Spacers: (Included): 20mm (Minimum): 20mm

Max Distance of Screen from Grip Feet: 422mm

Screen Heights from Desktop (with included 20mm Leg Spacer)

• • Screen Down, Lower Corner of Screen Surface to Desktop: -12mm
  • Keyboard Clearance, Bottom of Screen to Desktop at 265mm from grip feet: 48mm
  • Screen Up, Bottom of Screen to Desktop: 56mm

Please note that this purchase does not include the screen or its accessories.

The visual representation of the XOOT system on the website may differ slightly from the final delivered product.
