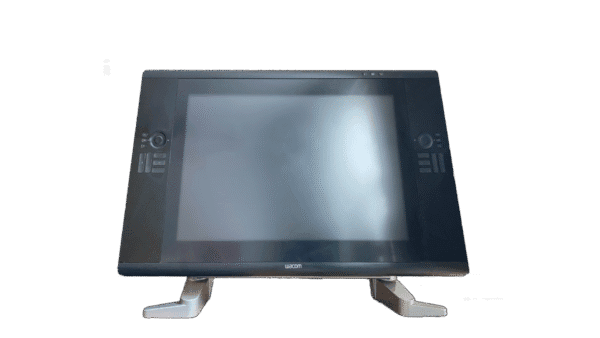

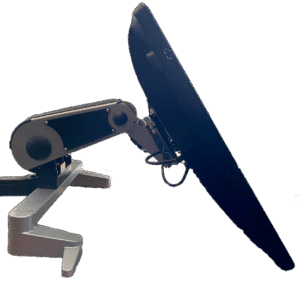

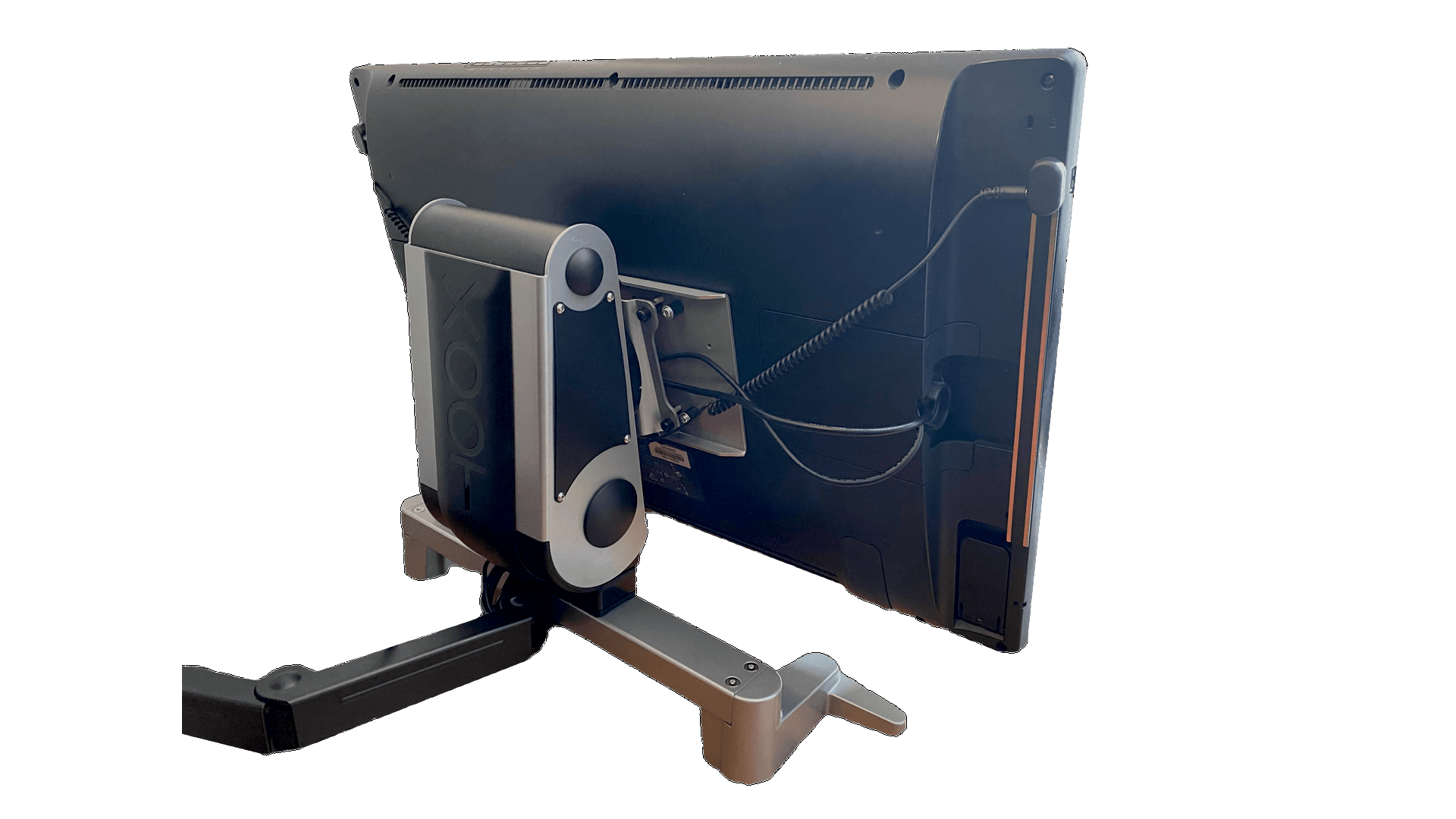

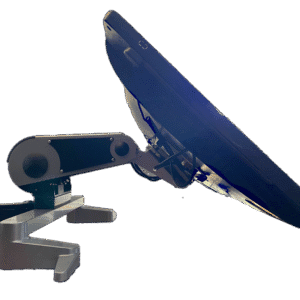

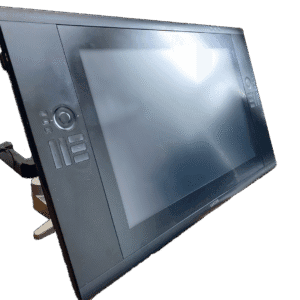

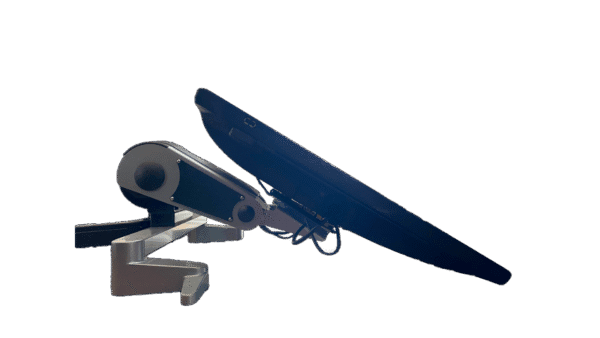

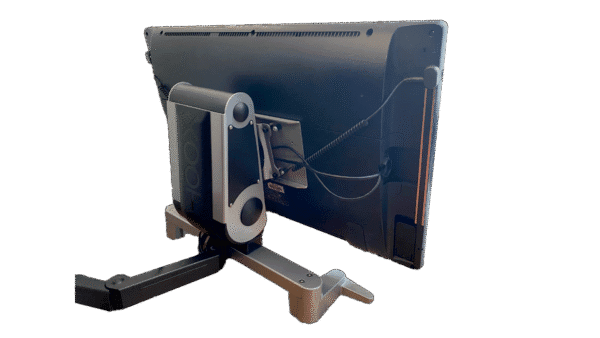

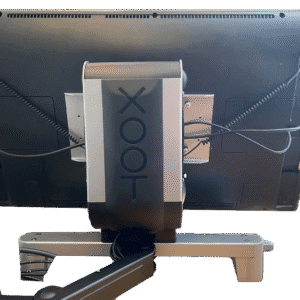

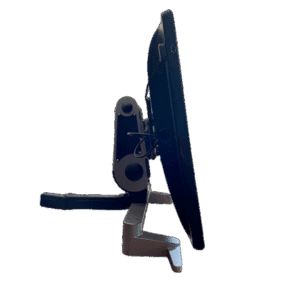

XOOT System for Wacom Cintiq 24 HD

XOOT_Pro arm with Kit for Cintiq 24 HD

This Kit bundle contains all parts required to attach: Cintiq 24 HD

This Kit Modifies a XOOT_Pro Cintiq 27 QHD Kit to add a modified mounting plate to attach a Cintiq 24 HD.

We did not have a Cintiq 24 HD on hand to produce this kit.  It was developed in conjunction with an artist far away.

⚠️Warning, ensure your workspace is compatible with XOOT_Pro before purchasing.

See: Desk Compatibility Guide.

Cables.

Included Cables: HDMI, and USB.  These cables extend approximately 6 ft (2 m) from the back of the desk.

Some assembly is required.

• Printed Instructions.pdf
• Video Instructions

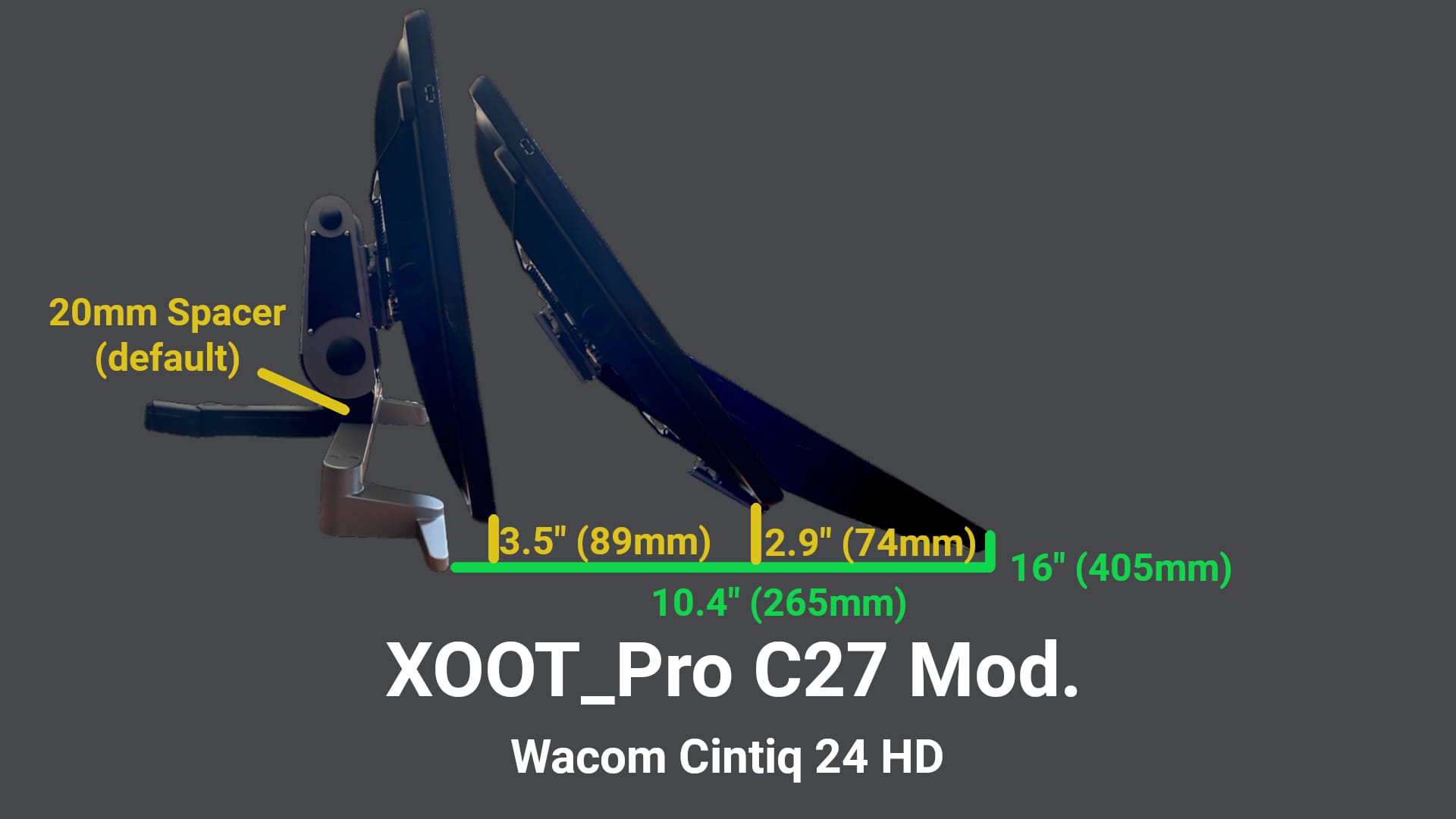

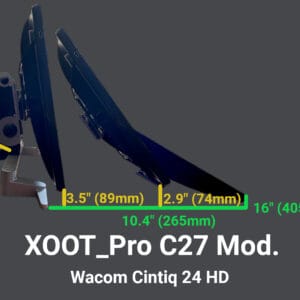

Kit Clearance and Reach

Leg Spacers: (Included): 20mm   (Minimum): 10mm

Max Distance of Screen from Grip Feet: 406mm

Screen Heights from Desktop (with included 20mm Leg Spacer)

• Keyboard Clearance,  Bottom of Screen to Desktop at 265mm from grip feet: 74mm
• Screen Up, Bottom of Screen to Desktop: 89mm

Please note that this purchase does not include the screen or its accessories.

The visual representation of the XOOT system on the website may differ slightly from the final delivered product.
