A customer asked:
“I would like to create some custom mods to the feet. Is there a way to get a 3d file or detailed measurements of the feet? Thanks!”

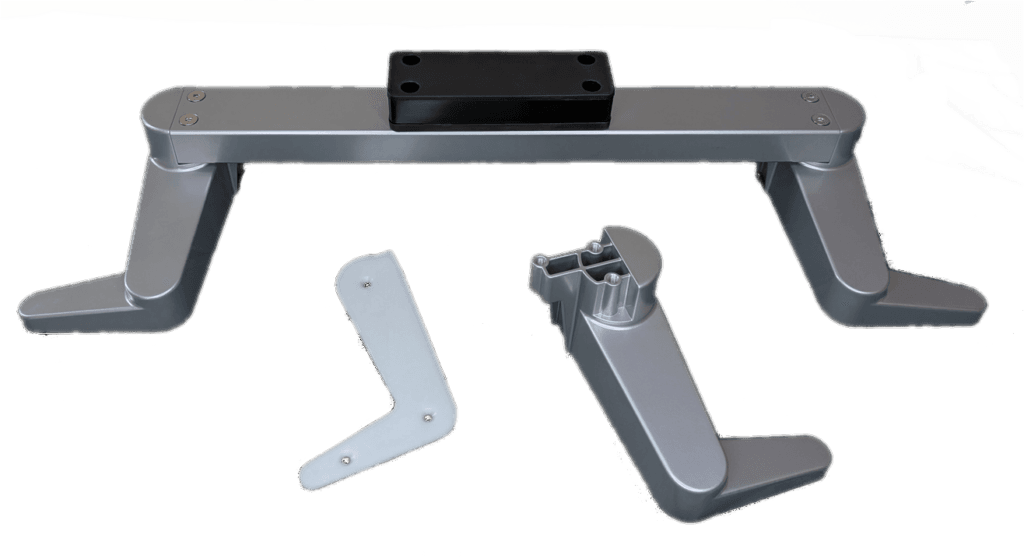

We’re happy to help. However, instead of just the feet, here are the details of the full leg assembly.
Table of Contents:
- Drawings with Dimensions (in millimeters)
- STL Files (for 3d printing and design help)
- Sample Part (Top Plate over leg and foot)
If you make your own design, we encourage you to share it. We’ll happily post it on the DIY page, or link to it if it’s posted elsewhere.
Drawings

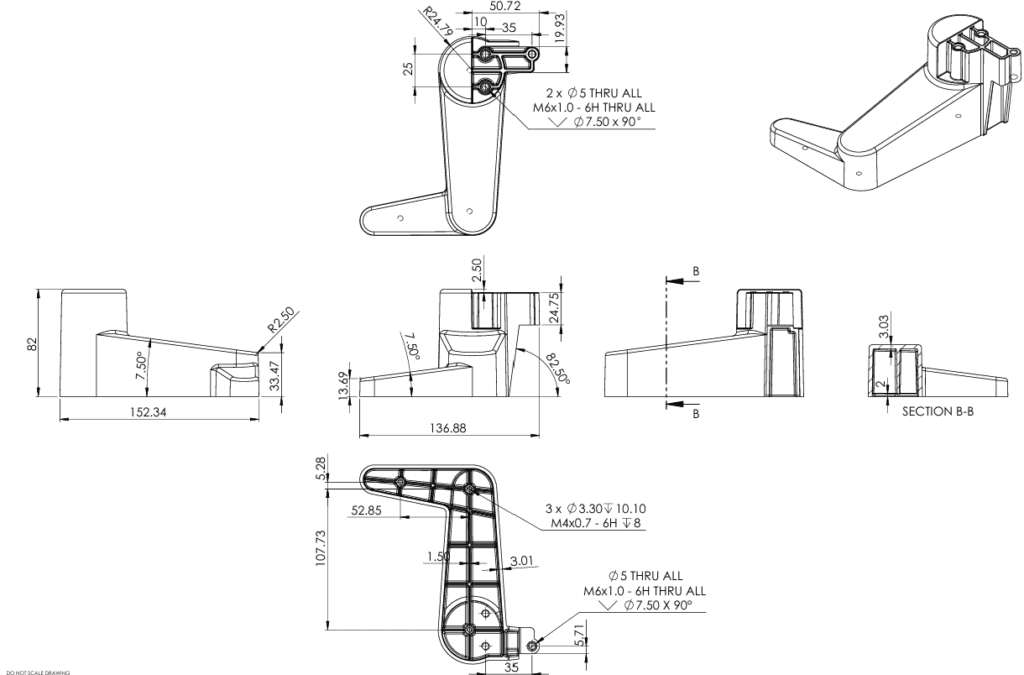

Foot Dimensions

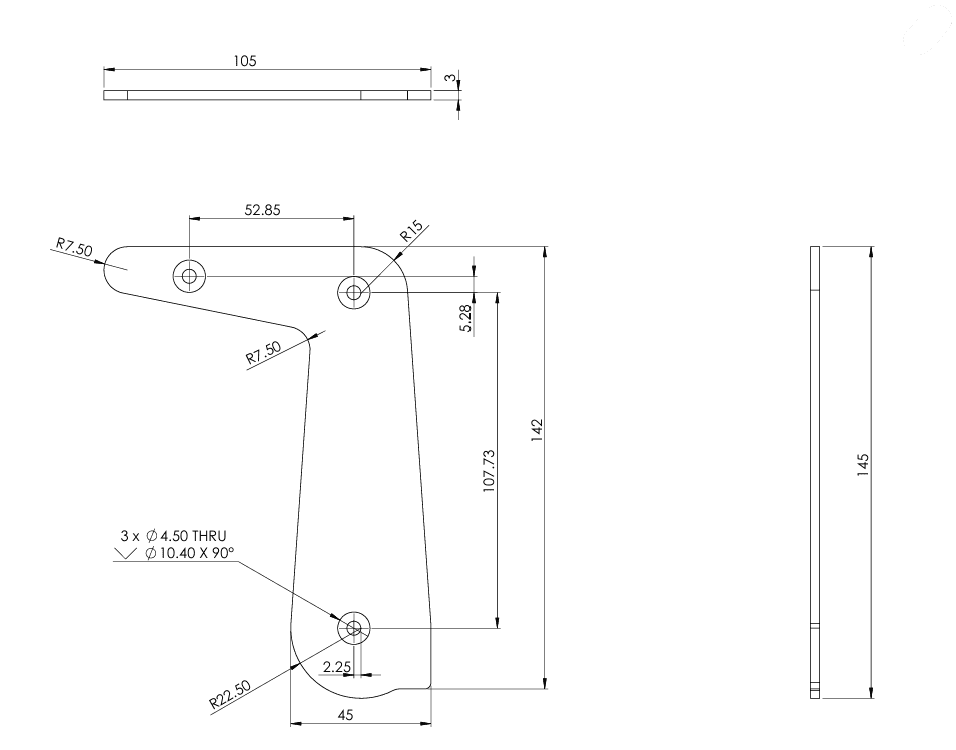

Foot Pad Dimensions

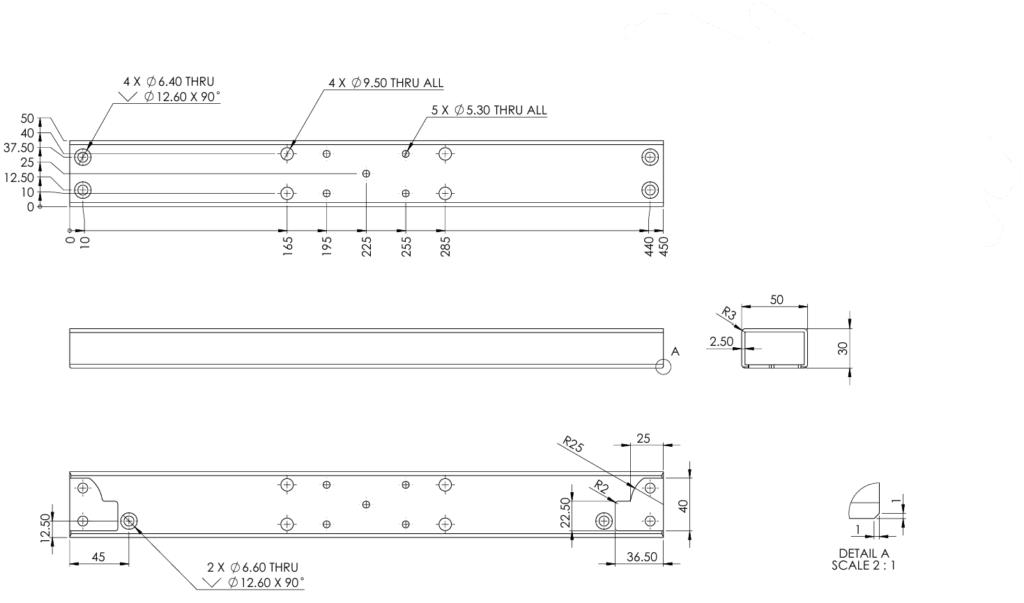

Crossbar Dimensions

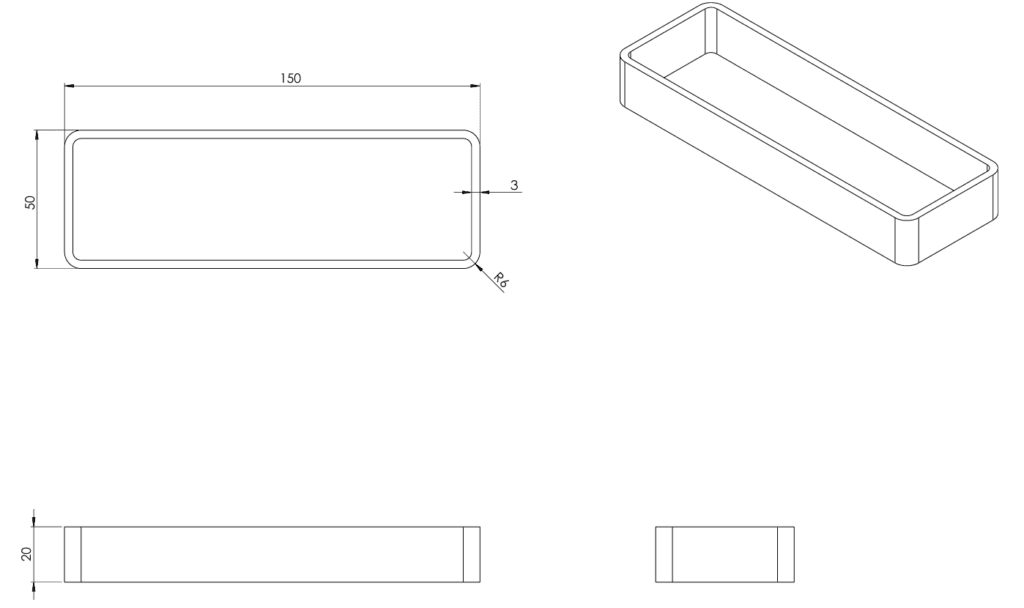

Spacer Tube Dimensions

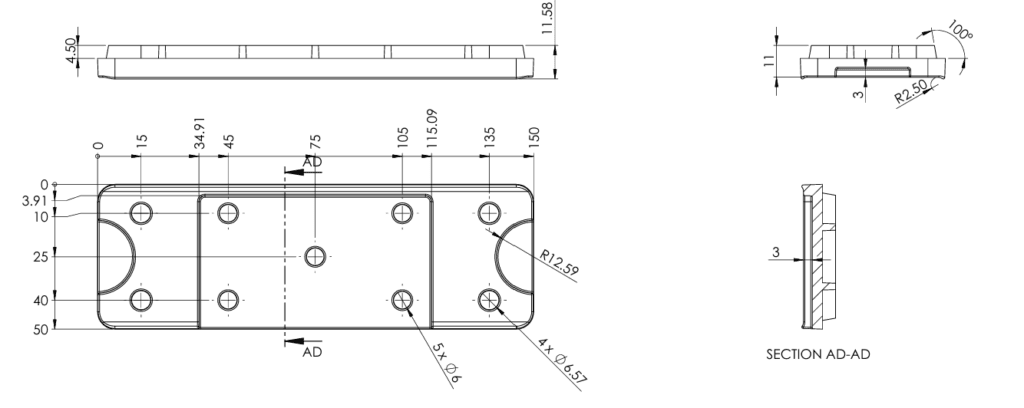

Lower Spacer Dimensions

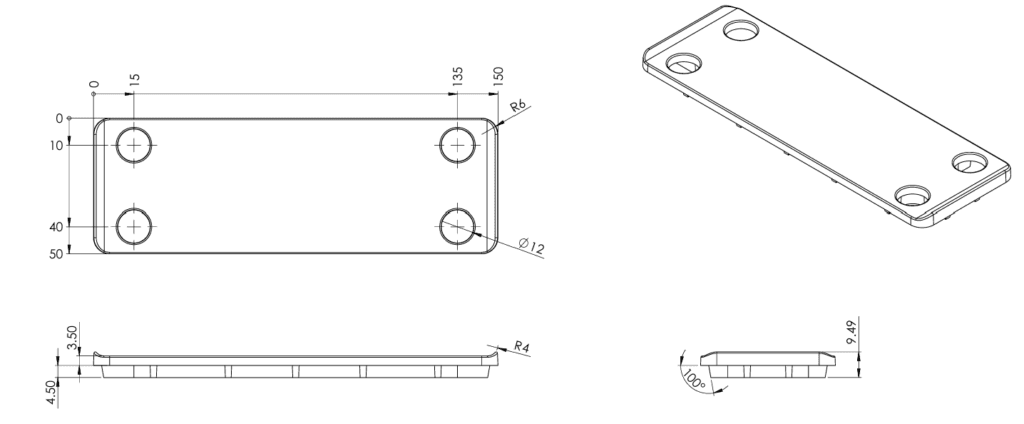

Upper Spacer Dimensions
STL Files (3d Printing)
STL shape files can be used as a reference to simplify your design work.
Click on the links below to download STL files.

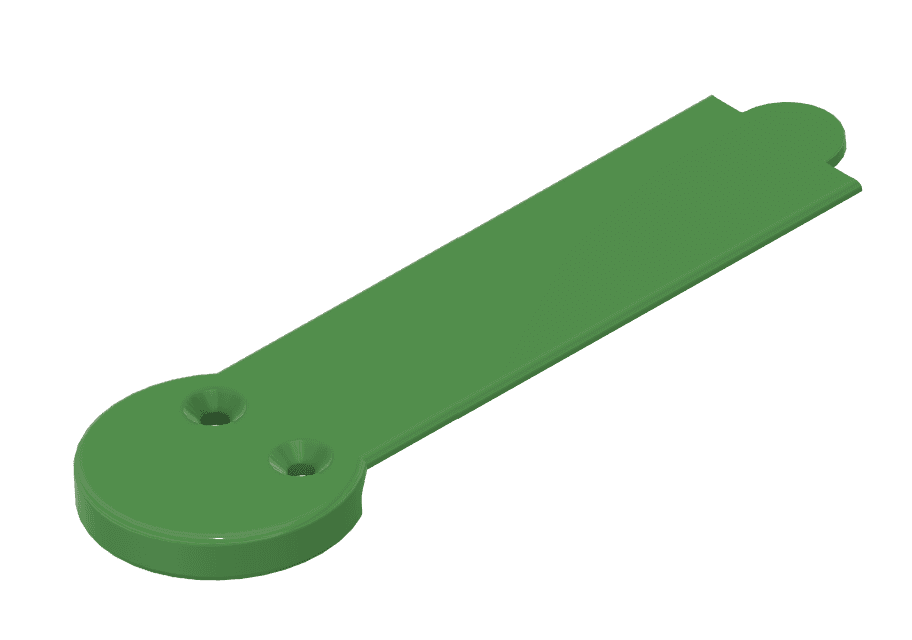

Sample Part

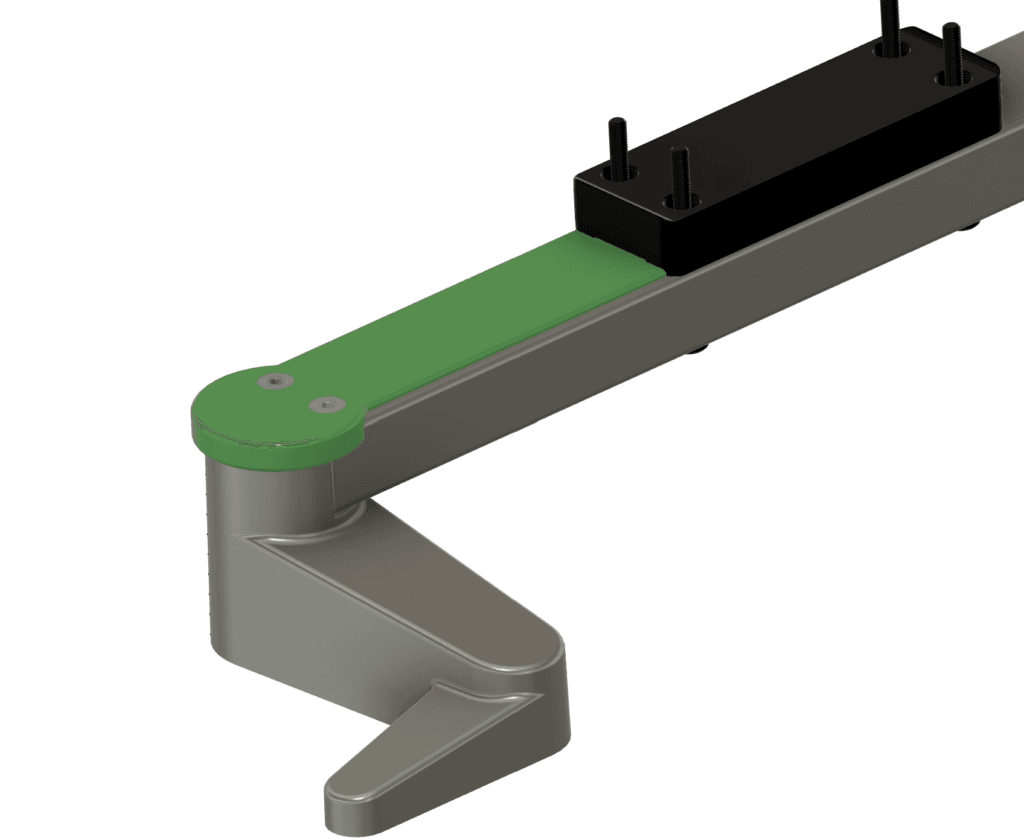

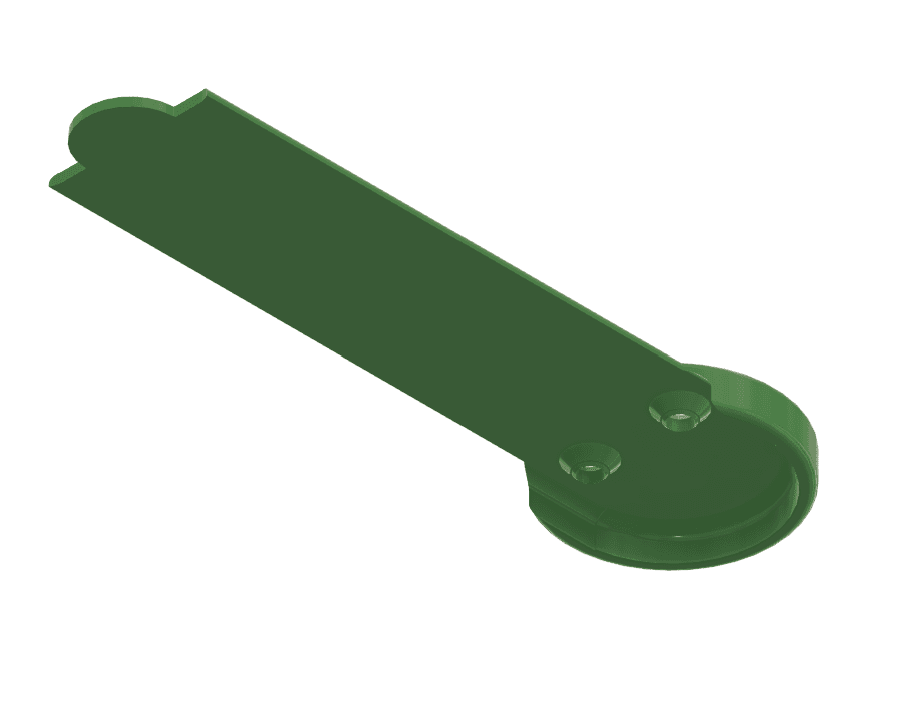

Here is a sample part. It’s a plate that covers the top of the leg and foot.
